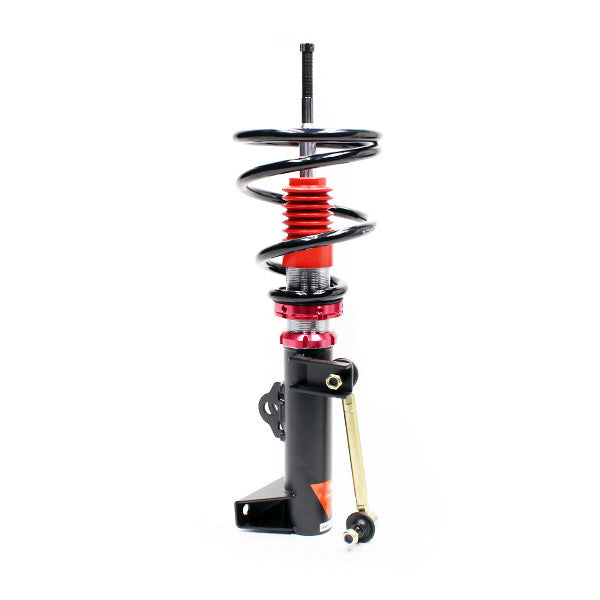

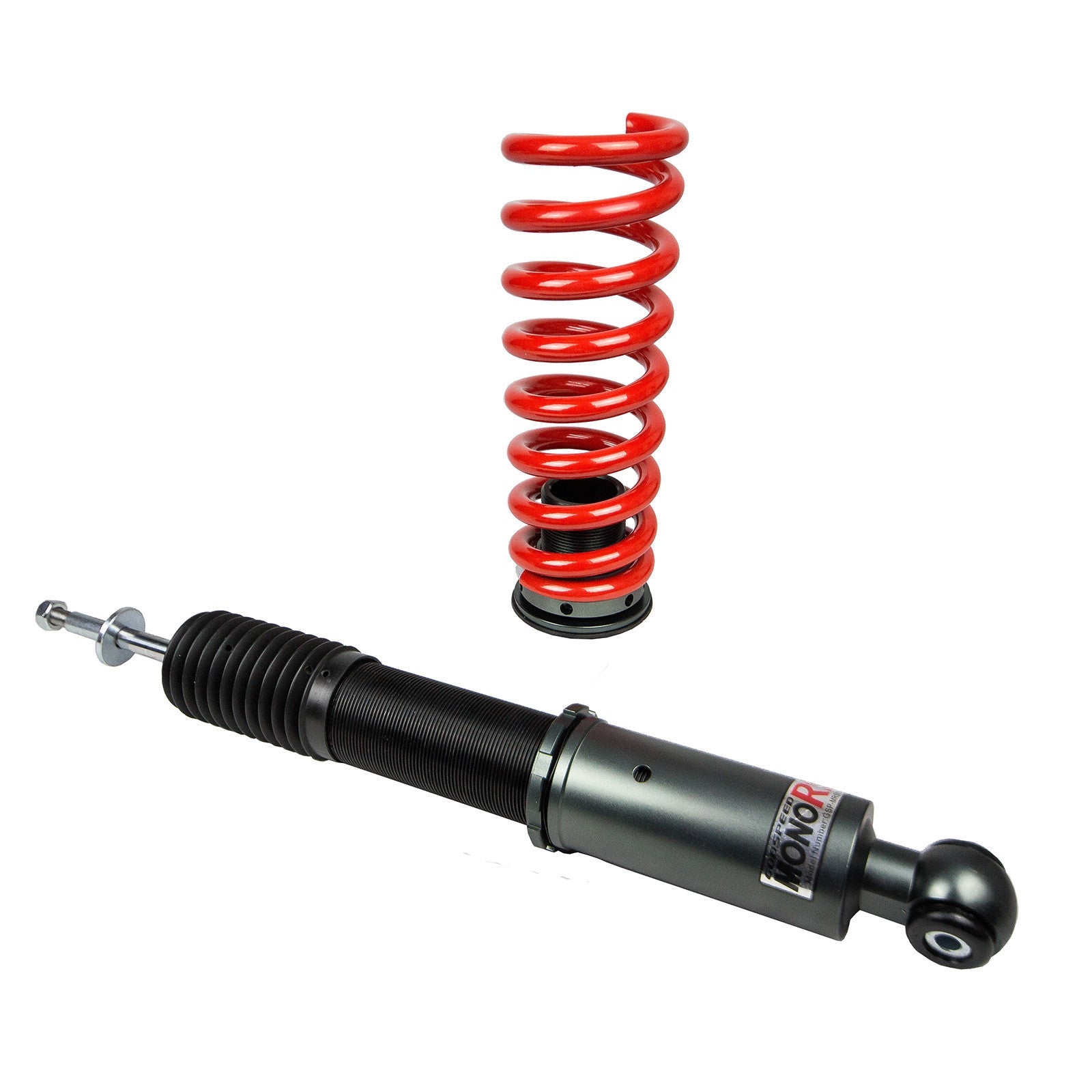

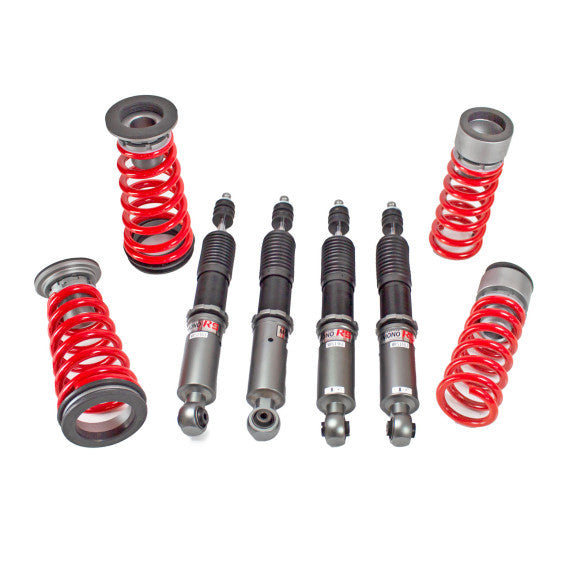

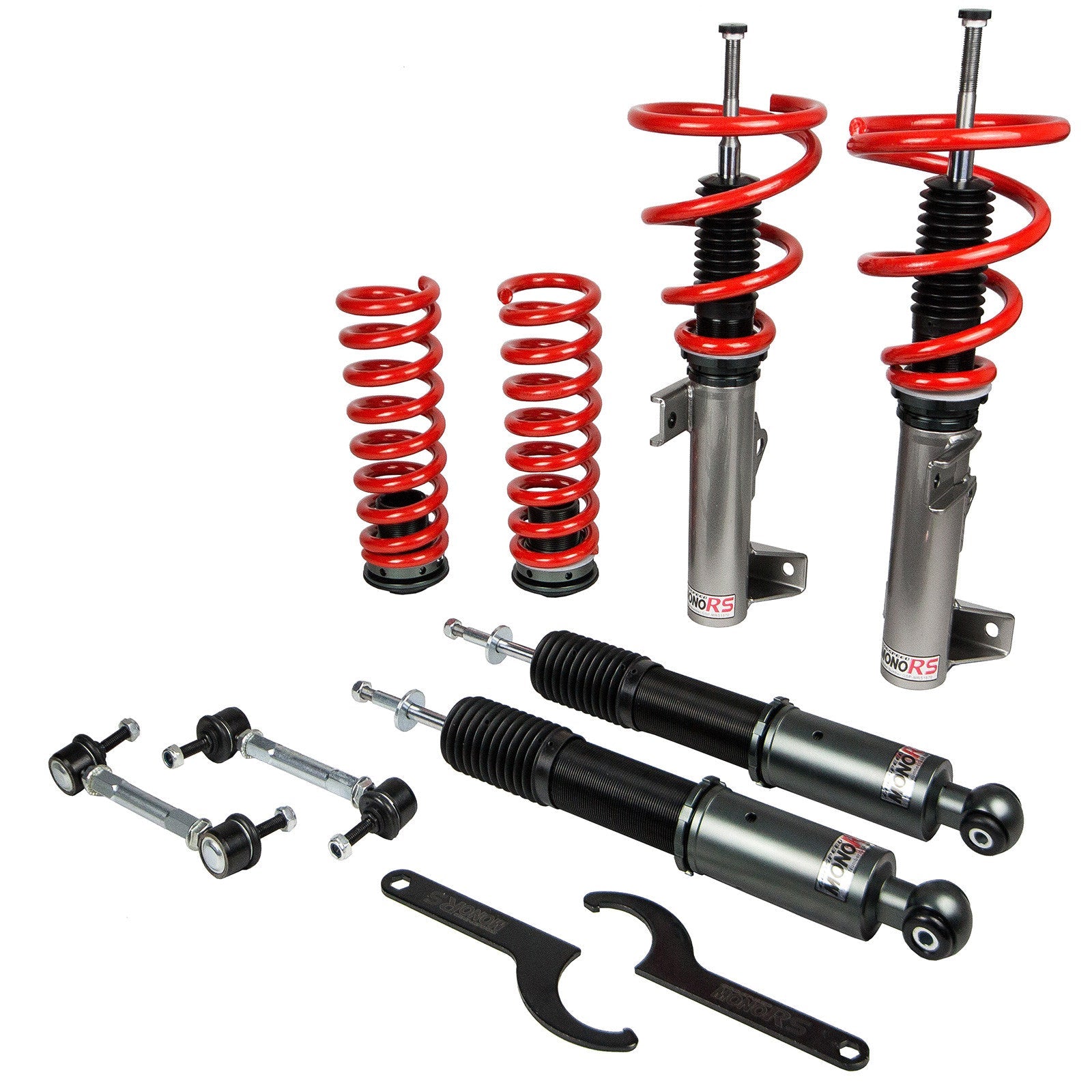

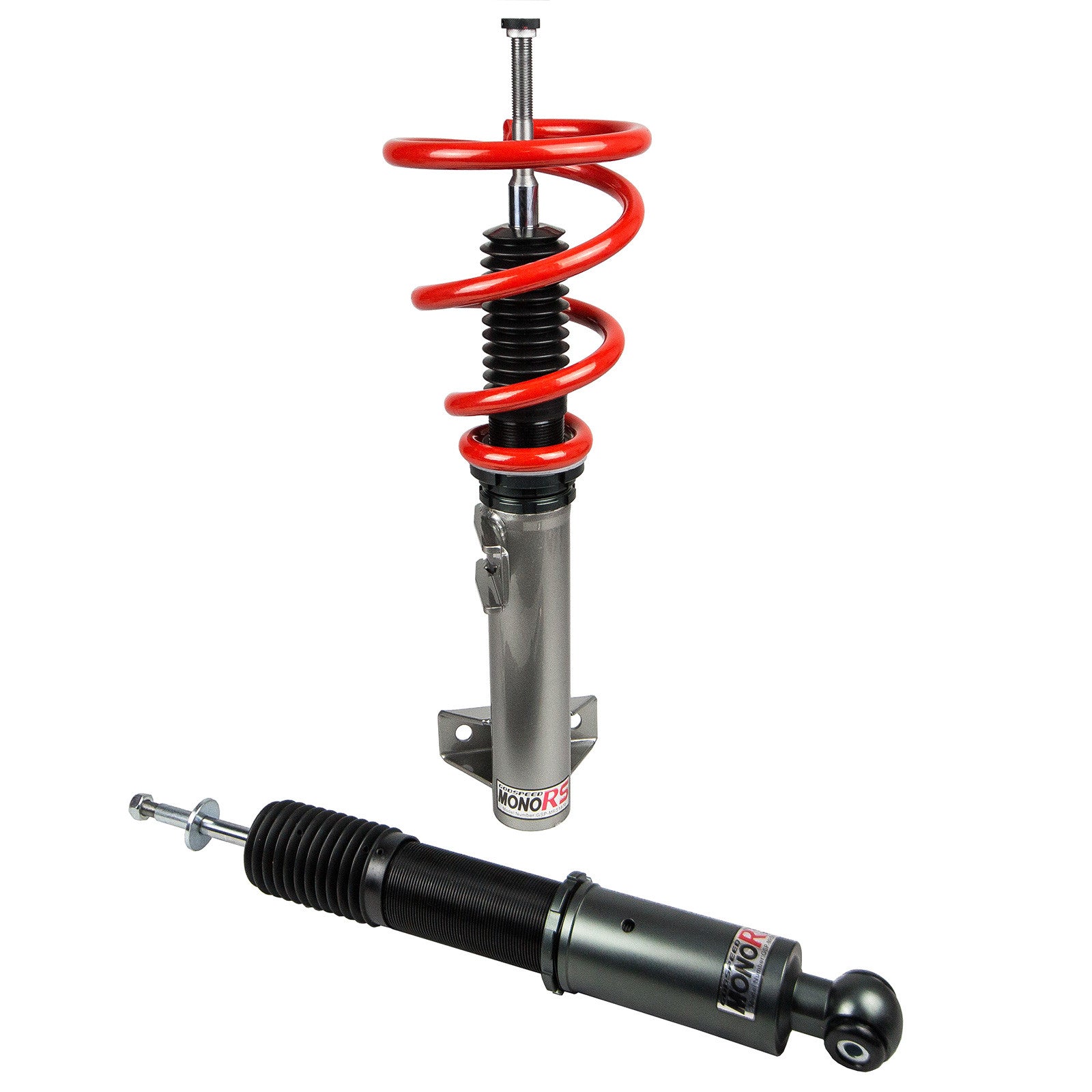

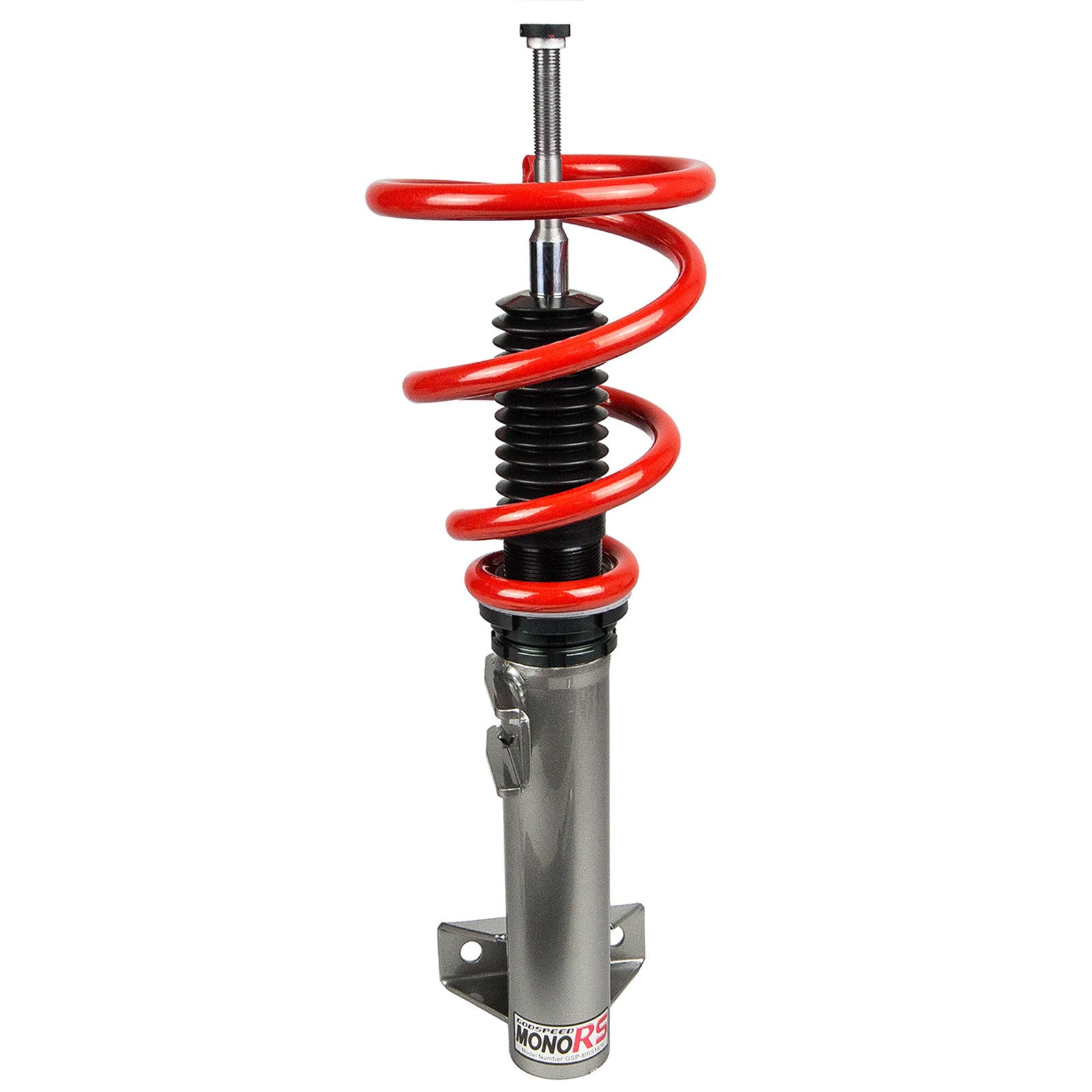

Godspeed Mercedes-Benz C-Class RWD (W202/W203) MonoRS Coilovers

Godspeed Mercedes-Benz C-Class RWD (W202/W203) MonoRS Coilovers

$850.00 USD
$850.00 USD $850.00 USD
Sale Sold out
Model, Year, Style

W203, 2001-2007, MonoRS

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 32-Level
Height Adjustment Yes
Spring Rate(Front) 8 kg/mm
Spring Rate(Rear) 9 kg/mm
Spring Length(Front) 195 mm
Spring Length(Rear) 255 mm

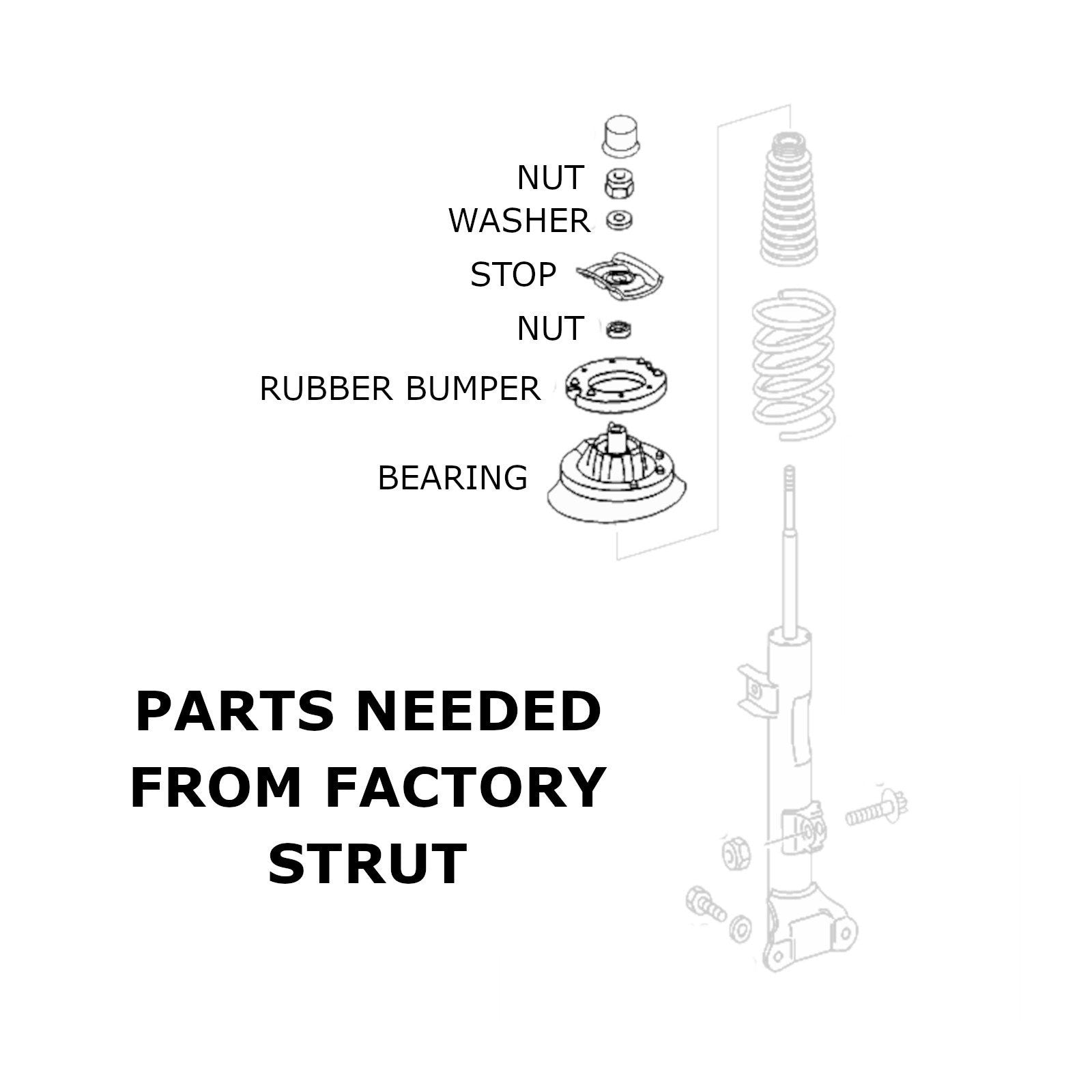

Front Top Mount No, Reuse Factory

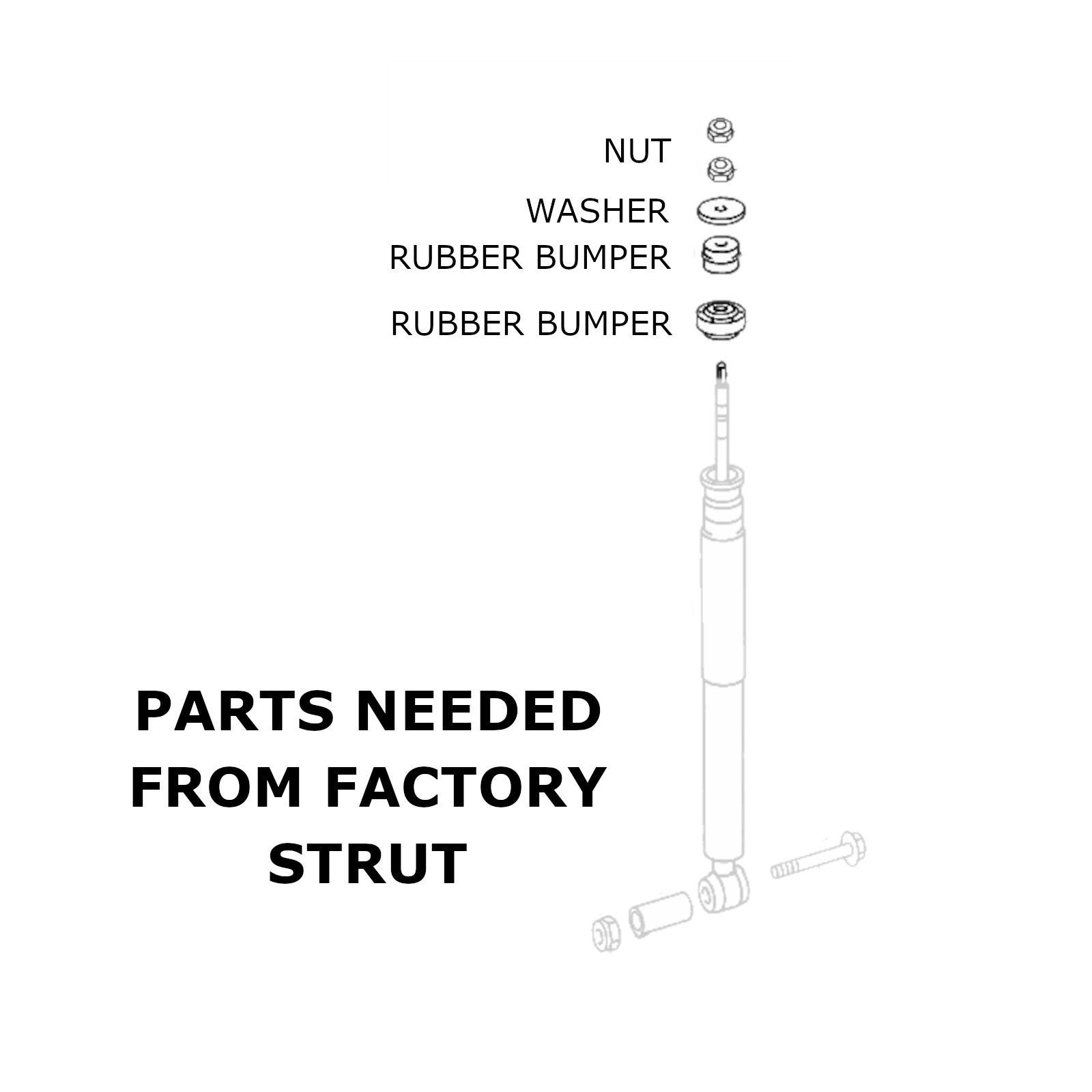

Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62 mm
Spring Inner Diameter(Rear) 62 mm
Warranty Note No
User Guide Coilover User Guide

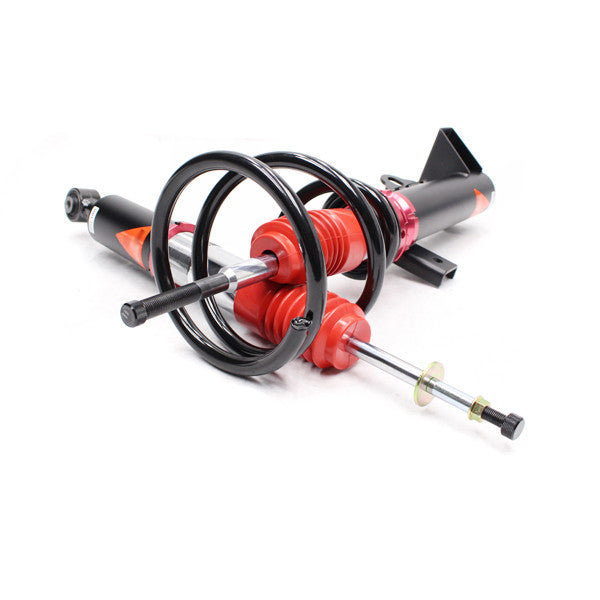

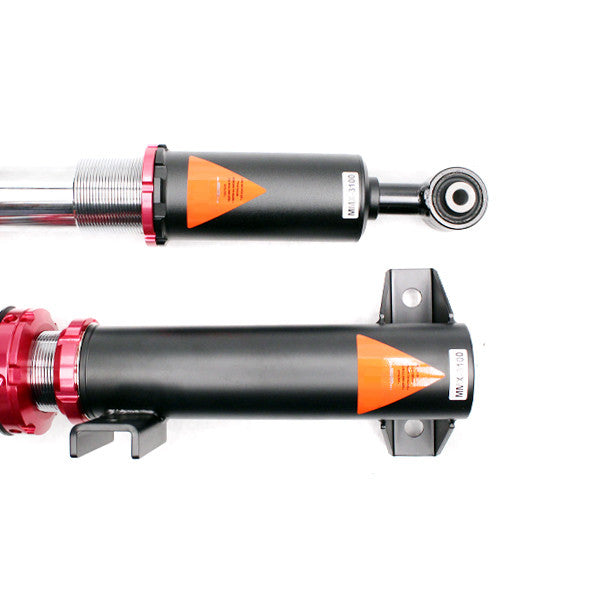

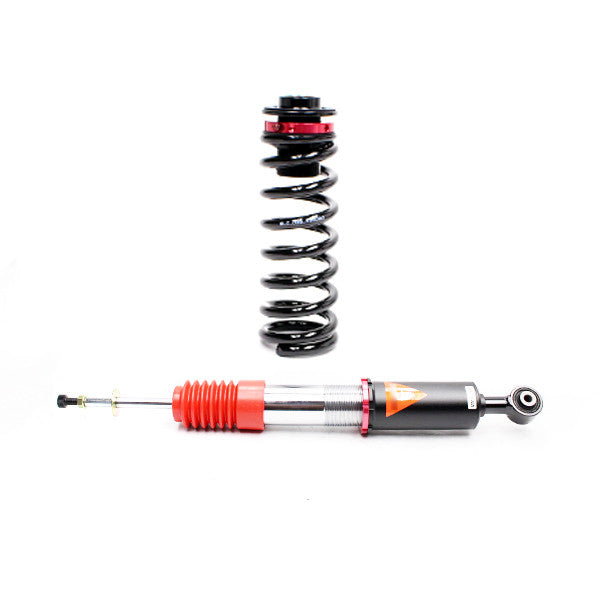

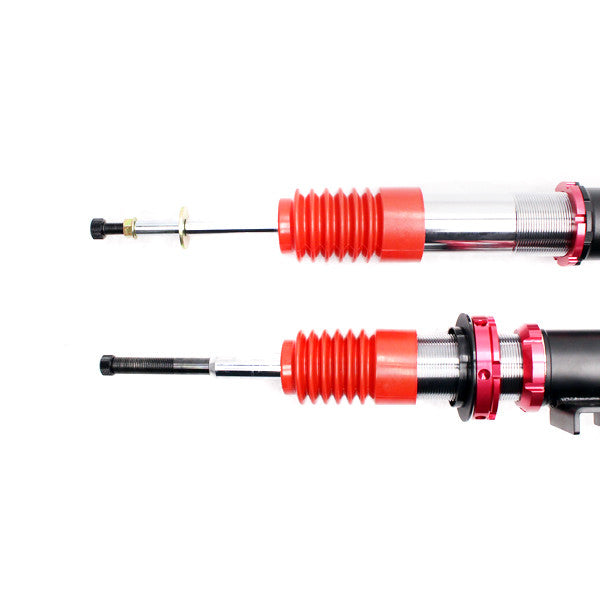

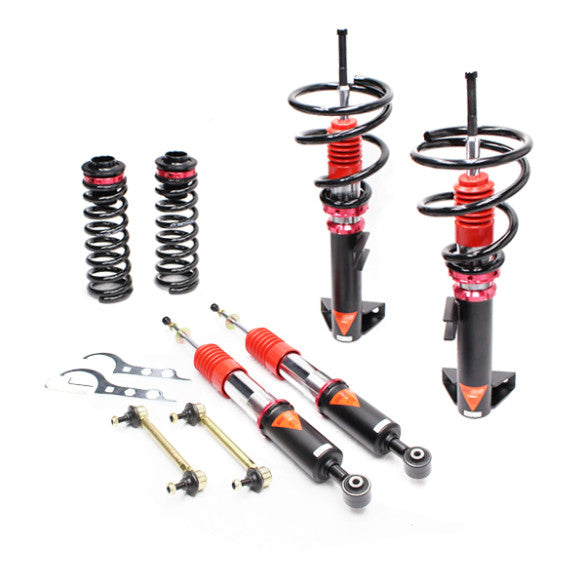

W203, 2001-2007, MAXX

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 40-Level
Height Adjustment Yes
Spring Rate(Front) 7.8 kg/mm (437 lbs/inch)
Spring Rate(Rear) 9 kg/mm (504 lbs/inch)
Spring Length(Front) 195 mm
Spring Length(Rear) 255 mm
Front Top Mount No, Reuse Factory
Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide

W202, 1994-2000, monoRS

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 32-Level
Height Adjustment Yes
Spring Rate(Front) 15 kg/mm (840 lbs/inch)
Spring Rate(Rear) 11 kg/mm (616 lbs/inch)
Spring Length(Front) 230 mm
Spring Length(Rear) 210 mm
Front Top Mount Yes, Standard Type
Rear Top Mount Yes, Standard Type
Spring Inner Diameter(Front) 62-98 mm (2.44-3.86 inch)
Spring Inner Diameter(Rear) 62-72 mm (2.44-2.83 inch)
Warranty Note No
User Guide Coilover User Guide

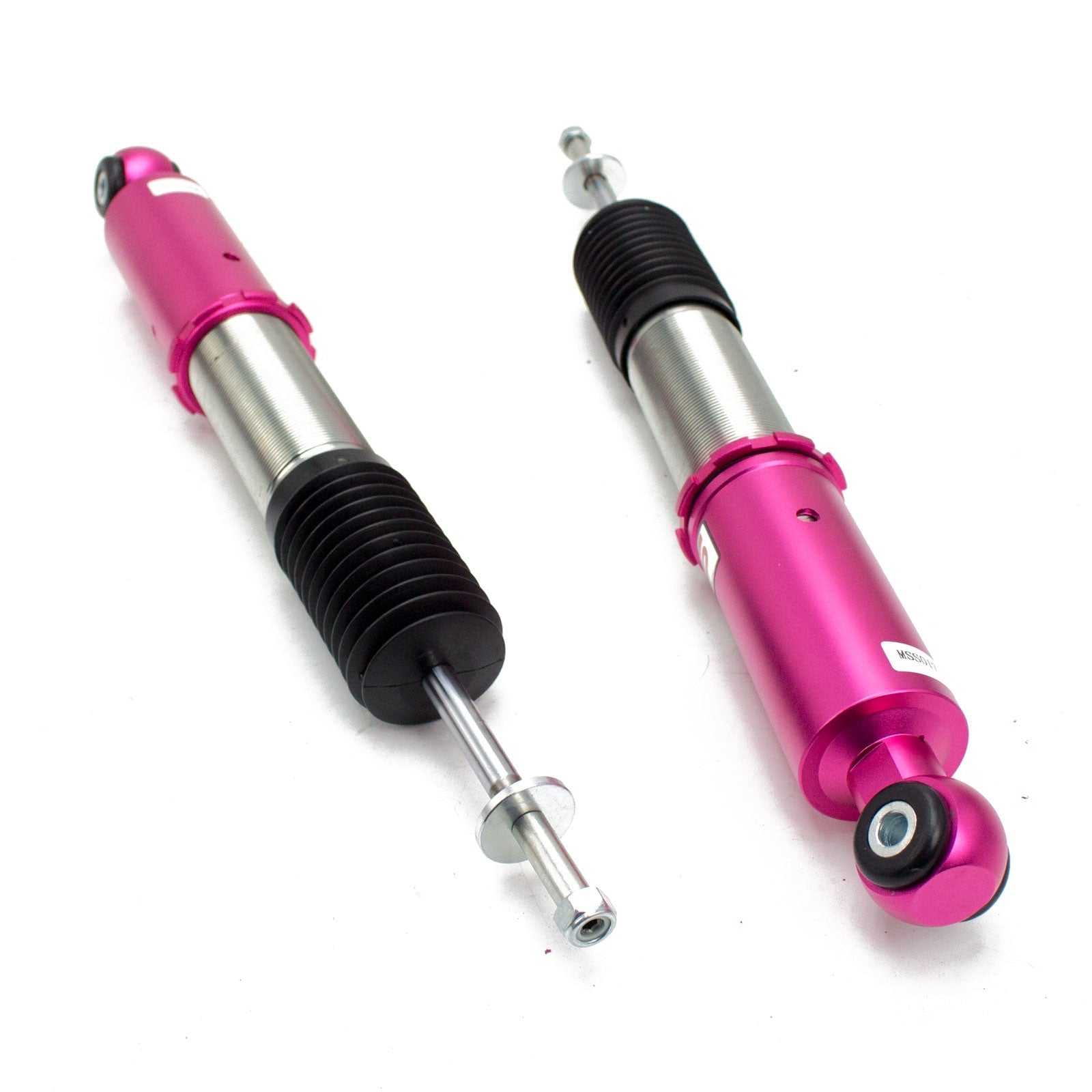

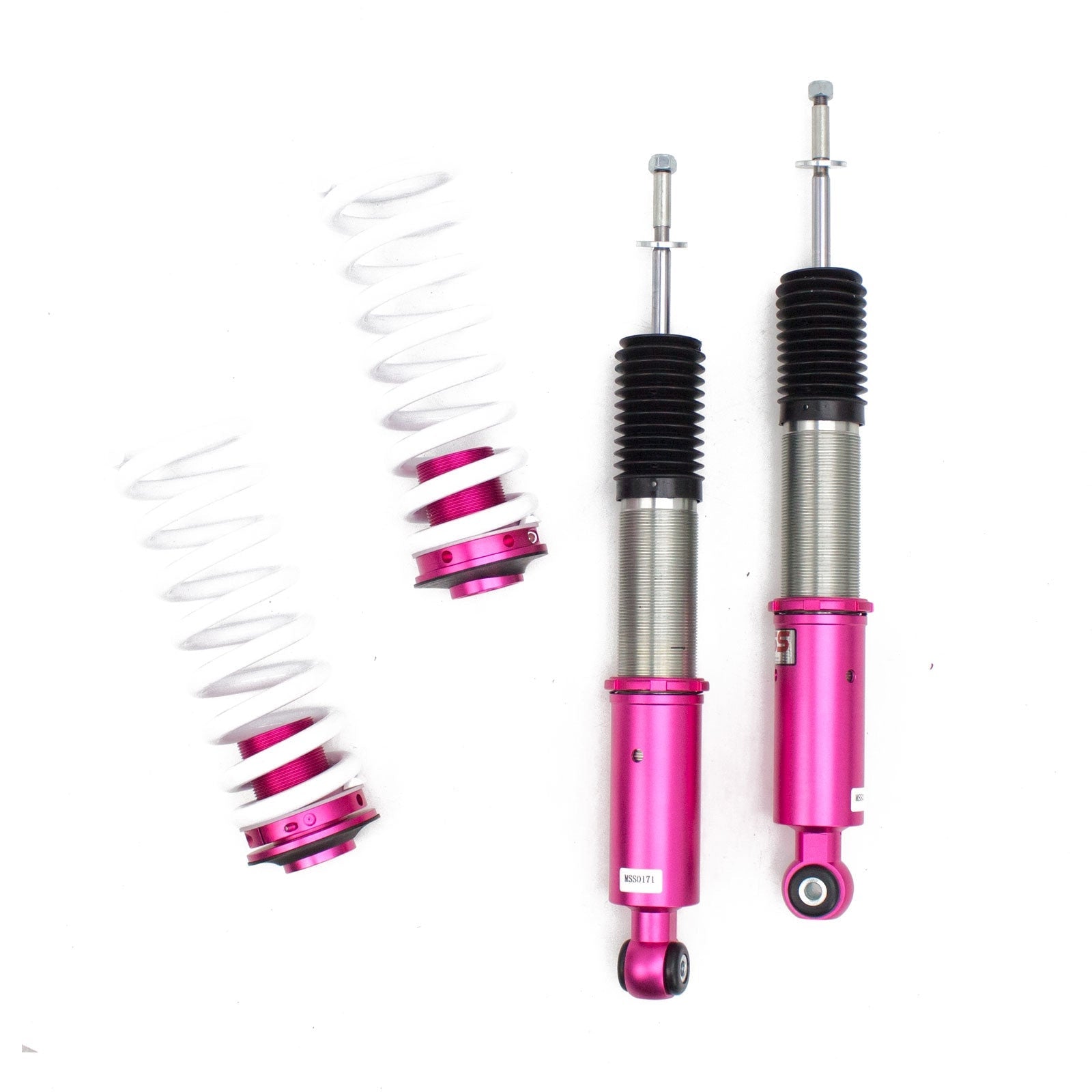

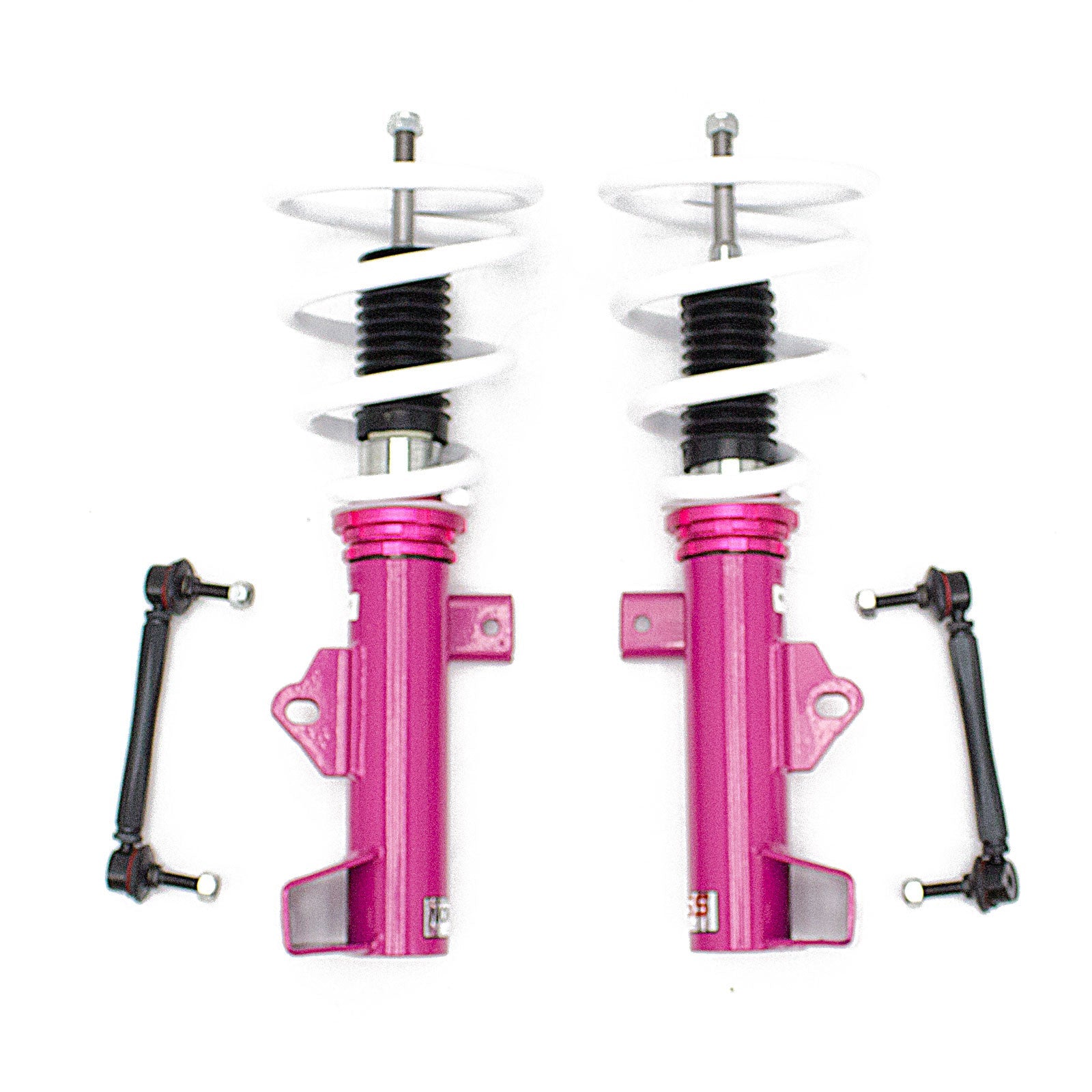

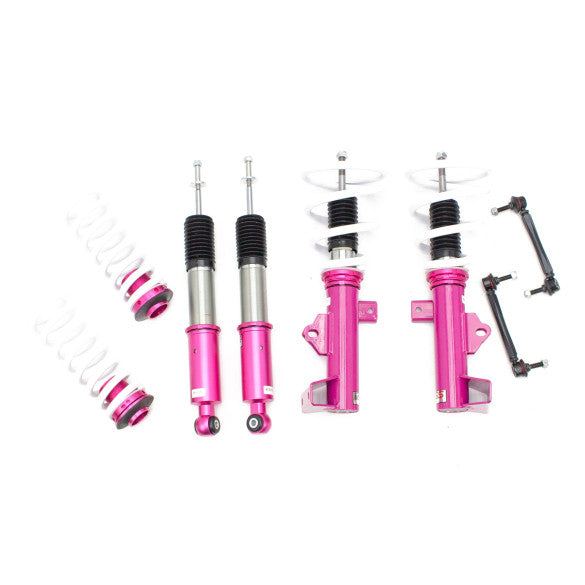

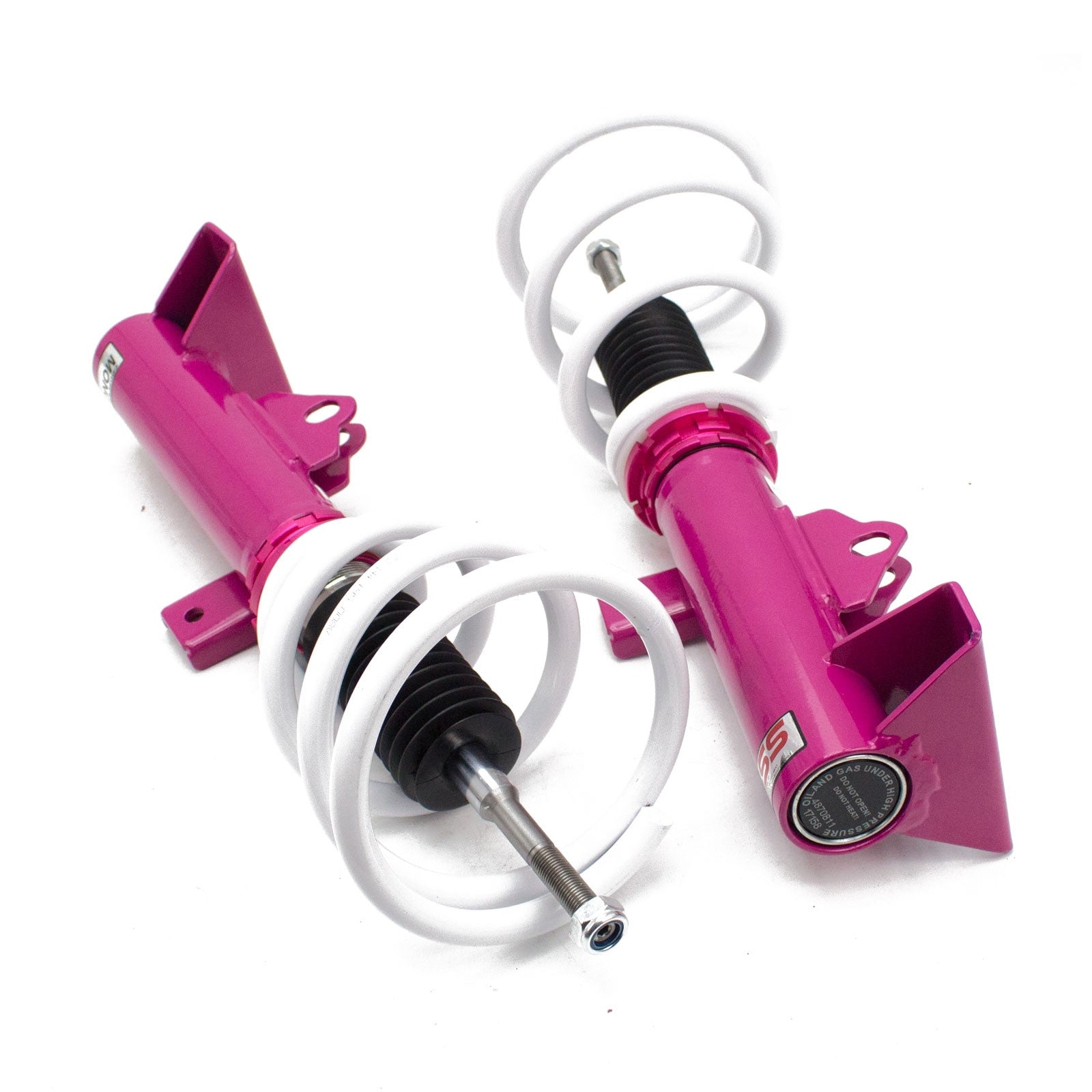

W203, 2001-2007, MonoSS

Special Notes excl. Models w/ Auto-Leveling System; Reuse Factory Top Mount
Damping Levels 16-Level
Height Adjustment Yes
Spring Rate(Front) 8 kg/mm (448 lbs/inch)
Spring Rate(Rear) 9 kg/mm (504 lbs/inch)
Spring Length(Front) 195 mm
Spring Length(Rear) 255 mm
Front Top Mount No, Reuse Factory
Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62-144 mm (2.44-5.67 inch)
Spring Inner Diameter(Rear) 62-72 mm (2.44-2.83 inch)
Warranty Note No
User Guide Coilover User Guide
