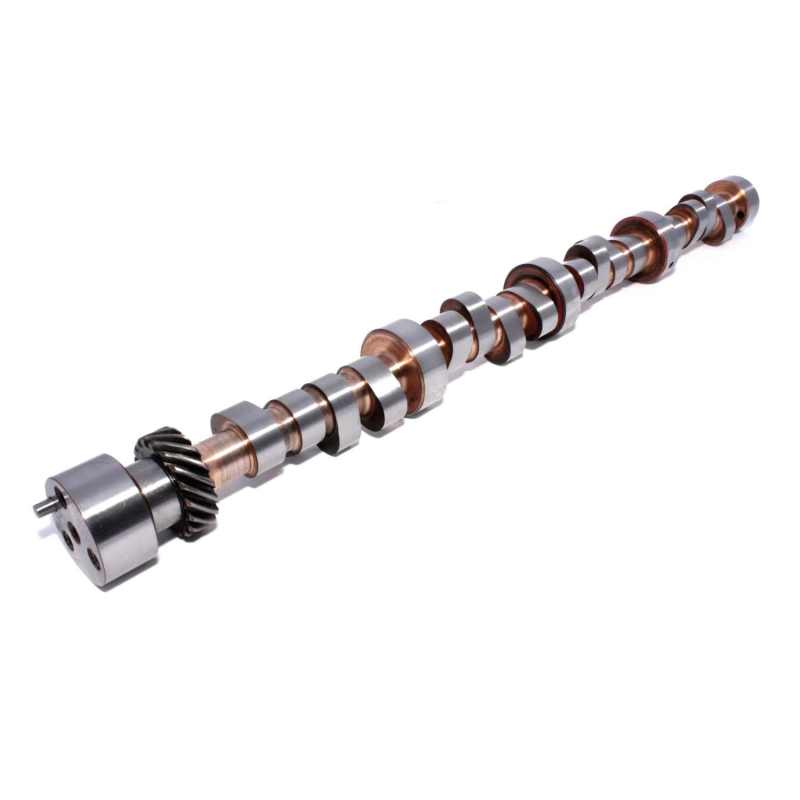

Comp Cams Drag Race RX296R-8; 4000 - 6500 RPM Range

Drag Race RX296R-8; 4000 - 6500 RPM Range

Mechanical (Solid) Roller Camshaft):

Best All Around Bracket Or Super Street Cam.

Best In Light To Medium Weight Car w/ 11:1 Compression.

4200+ Stall In 440.

4500+ Stall In 383.

Specifications

Lifter Type: Solid Roller Lifter

Engine Family: Chrysler 383-440 C.I. 8 CYL. 1959-1980

Cam Family: Drag Race Mechanical Roller Camshafts

RPM Range: 4000 to 6500

Valve Timing: 0.02

Lobe Separation: 108°

Intake Centerline: 108°

Valve Lash: 0.026(Intake)/ 0.026(Exhaust)

Duration: 296(Intake)/ 303(Exhaust)

Duration @ .050" Lift: 263(Intake)/ 270(Exhaust)

Valve Lift: 0.65(Intake)/ 0.651(Exhaust)

Lobe Lift: 0.433(Intake)/ 0.434(Exhaust)
